rincian produk

Rumah Produk

4RT Automatic Demolding Flat Plate Vulcanizing Machine - Hot Press Machine - Rapid Heating with Uniform Temperature - Temperature Controlled by Electrical Control Box - Customizable Processing Availab

4RT Automatic Demolding Flat Plate Vulcanizing Machine - Hot Press Machine - Rapid Heating with Uniform Temperature - Temperature Controlled by Electrical Control Box - Customizable Processing Availab

Nama merek:	Beishun
Nomor Model:	XLB-600 × 600
MOQ:	1set
harga:	Dapat dinegosiasikan
Kemampuan Pasokan:	10set/45 hari

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Qingdao

Sertifikasi:

ISO9001/CE

Produk Produksi:

Paking karet

Plunger Stroke:

300mm

Bahan:

Baja Karbon/Baja Tahan Karat

Jaminan Kualitas:

1 Tahun

Cycletime:

30-300 detik

Sesuaikan:

Disesuaikan

Bagian Listrik:

Schneider

Lampu siang lempeng:

200mm

Modus Pemanasan:

Pemanas listrik atau uap

Sistem Pengendalian:

PLC

Frekuensi:

50Hz

Perangkat Keamanan:

Tirai Pengaman

Fitur Keamanan:

Perlindungan Overload, Berhenti Darurat

Tekan:

Tekanan hidrolik

Ukuran:

Tergantung model, biasanya 2m x 1,5mx 2m

Kemasan rincian:

kotak kayu

Menyoroti:

automatic demolding flat plate vulcanizing machine

hot press machine with rapid heating

temperature controlled rubber vulcanizing press

Deskripsi Produk

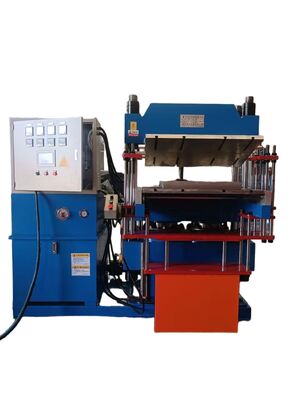

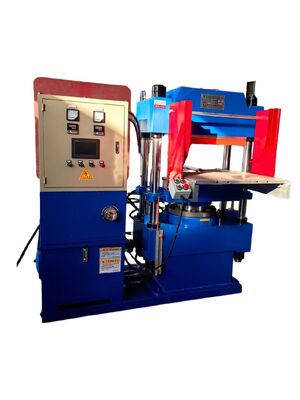

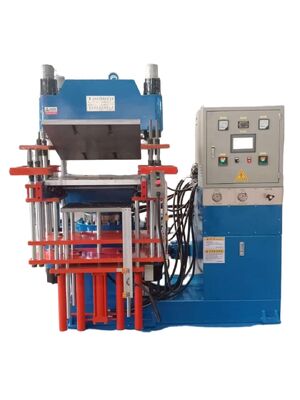

4RT Automatic Demolding Flat Plate Vulcanizing Machine

This advanced hot press machine features rapid heating with uniform temperature distribution and complete PLC control system for precise rubber and plastic molding processes.

Key Features & Specifications

4RT Structure: Four-layer independent push-out demolding mechanism for multi-layer composite molds
Automatic Demolding: Hydraulic pins automatically eject vulcanized products, eliminating manual mold removal
Rapid Uniform Heating: Fast heating with minimal temperature variation across the entire hot plate surface
Precision Control: Integrated electrical control box with complete PLC system for temperature, pressure, and timing
Customizable Design: Available in various tonnage, table size, layer configurations, and automation options

This specialized equipment is ideal for rubber and plastic hot pressing molding applications, ensuring stable product quality through precise temperature and pressure control.

Frequently Asked Questions

How to choose the tonnage of a vulcanizing machine?

Calculate based on product's projected area and required material pressure. Conventional rubber: 12-20 MPa; silicone rubber: 10-15 MPa. Small sealing rings: 50-200T; conventional products: 200-400T; large sheets/linings: 500T and above.

What is the difference between four-column and frame-type machines?

Four-column machines are versatile with large stroke and cost-effective for conventional molds. Frame-type machines offer superior rigidity, minimal table deformation, and high precision for high-pressure, high-precision applications.

How to choose between single-layer and multi-layer machines?

Single-layer provides uniform temperature control ideal for thick precision products. Multi-layer offers high capacity in compact footprint for mass production of thin small parts, though slight inter-layer temperature differences may occur.
