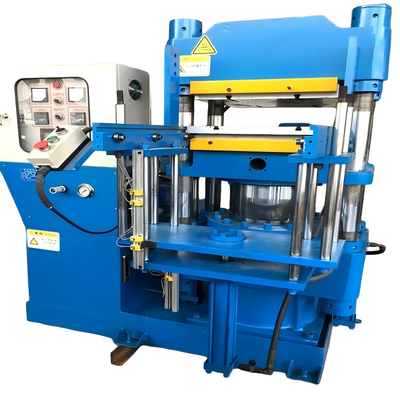

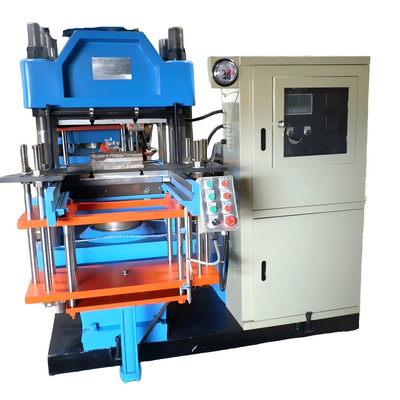

Customized Servo 250T 2TR Four-column Automatic Mold-moving Electric Heating Flat Vulcanizing Machine With R Function

Customized Servo 250T 2TR Four-column Automatic Mold-moving Electric Heating Flat Vulcanizing Machine With R Function

Nama merek:	Beishun
Nomor Model:	XLB-800*800
MOQ:	1set
harga:	Dapat dinegosiasikan
Ketentuan Pembayaran:	T/T,L/C
Kemampuan Pasokan:	30 set/60 hari

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Qingdao

Sertifikasi:

ISO/CE

Voltase:

220V/380V/400V/440/

kekuatan (w):

1,5KW - 75KW,4KW,2.2,2.2KW,36Kw

Kondisi:

Baru

Berat:

658kg,800kgs,3,5ton,810kg, sesuai ukuran

Jaminan:

1 Tahun, satu tahun, 2 Tahun, 12 bulan, 1 tahun untuk mesin press vulkanisir tunggal

jenis:

Vulkanisir, Kolom, mesin press tablet, kontrol PLC, mesin press vulkanisir pelat

Layanan Purna Jual Disediakan:

Insinyur tersedia untuk melayani mesin di luar negeri, Layanan pemeliharaan dan perbaikan lapangan,

Dimensi (l*w*h):

tidak ada, 1000x800x1200,1500*2000*1900mm,1680x1220x630, TERGANTUNG UKURAN MESIN

Warna:

Biru, Kuning, Putih dan lainnya diterima, kustomisasi, oranye

Aplikasi:

vulkanisasi menjadi produk akhir, sambungan vulkanisasi panas sabuk konveyor, kabel baja dan sambung

Lapisan kerja:

1,4-6 cetakan, 2,2-4 lapisan

Nama Produk:

mesin vulkanisir karet hot plate,mesin press vulkanisir karet ukuran platen 1400x5700mm,mesin press

Nama:

Mesin Press Vulkanisir Pelat Pemanas Karet Lab, Mesin Press Vulkanisir Karet Vakum, Mesin Cetak Komp

Bahan:

Paduan Aluminium

Tahun:

adat, 2018

Waktu Pendinginan:

sekitar 5 menit, 5 menit

Diameter Plunger:

180-290mm, 200mm

Suhu vulkanis:

Dapat disesuaikan, 145 °C

Cara pemanasan:

Uap atau minyak, sistem kelistrikan / oli

Kemasan rincian:

40GP

Menyoroti:

Four-column electric heating vulcanizing machine

Automatic mold-moving servo press

250T rubber vulcanizing machine with R function

Deskripsi Produk

Customized Servo 250T 2TR Four-column Automatic Mold-moving Electric Heating Flat Vulcanizing Machine With R Function

Rubber flat vulcanizing machines are engineered to induce chemical reactions in rubber materials, resulting in hardening and shaping to achieve desired physical properties and performance characteristics.

Primary Applications

Vulcanizing flat rubber belts including conveyor belts and transmission belts
Processing rubber sheets and other flat polymer products
Pressing various rubber molded components such as seals, O-rings, oil seals, and rubber gaskets
Processing thermosetting and thermoplastic plastic molded products, foams, resins, and building materials
Specialized explosion-proof models for methane or coal dust environments in underground coal mines

Operating Principle

This equipment utilizes integrated hydraulic and heating systems to facilitate rubber vulcanization under precisely controlled conditions.

Pressure Application: Hydraulic cylinders generate precise pressure to ensure complete mold cavity filling, minimize air bubble formation, and produce dense product structures.

Temperature Control: Heating platens utilize steam, heat transfer oil, or electric heating to elevate rubber compound temperature, promoting molecular cross-linking and transformation from linear to network structures.

Automated Operation: Modern systems feature PLC and touchscreen controls for automatic degassing, pre-compression, vulcanization timing, and mold opening sequences.

Operational Sequence

Place unvulcanized semi-finished product into the mold between heating plates
Introduce hydraulic medium into cylinders, activating plunger to push movable platform and compress mold
Introduce heating medium into heating plates
After achieving set temperature and time parameters, discharge hydraulic medium, open mold, and remove finished product

Technical Specifications

Type	XLB-600	XLB-1000	XLB-1200	XLB-1400	XLB-2000
Total Pressure	60t	100t	120t	140t	200t
Working Layer Number	2	2	2	2	2
Steam Chamber Internal Dia. (mm)	820	830	840	1050	1450
Piston (mm)	250	300	360	360	400
High Pressure (Mpa)	13	14	14	14	14
Low Pressure (Mpa)	5	5	5	5	5
Pressure in Bladder (Mpa)	1.5	2.1	2.1	2.1	2.1
Overall Dimension (mm)	1200×900×2400	1200×900×2358	1200×900×2500	1360×1050×3820	1500×1500×3200
Weight (kg)	3200	4500	5500	7000	8000
