Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press with 380V/50Hz Power and 220V/380V/Customized Voltage

Nama merek:	Beishun
Nomor Model:	8"-18"
MOQ:	6 set
harga:	Dapat dinegosiasikan
Rincian kemasan:	40GP
Ketentuan Pembayaran:	L/C,T/T,Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Qingdao

Sertifikasi:

ISO/CE

Kekuatan:

380V/50Hz

Frekuensi:

50Hz/60Hz

Bahan:

Jenis pemanas:

Listrik atau uap

Kode Hs:

84778000

Piston Qty:

Voltase:

220V/380V/disesuaikan

Rentang tekanan:

Tekanan 0-200MPa

Ketebalan Efektif:

1-4mm

Cara pemanas:

Listrik atau uap

Jenis:

Sepenuhnya otomatis

Kapasitas Produksi:

100-120 pcs/jam

Lebar penyambungan:

Maks 160mm

Warrenty:

1,5 tahun

Kapasitas:

100-120 ban per jam

Menyediakan kemampuan:

80 set

Menyoroti:

Electric Heating Motorcycle Tyre Curing Press

Hydraulic Tire Vulcanizing Press

Four-layer Motorcycle Tire Vulcanizing Machine

Deskripsi Produk

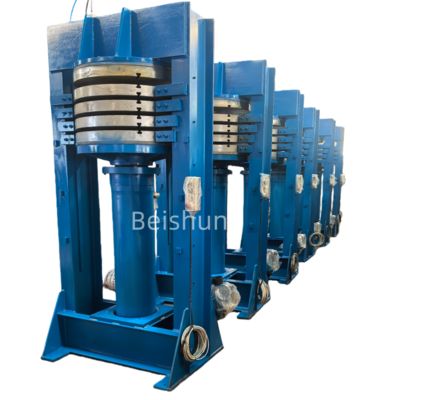

Semi-automatic Electric Heating Hydraulic Four-layer Motorcycle Tyre Curing Press Machine

This specialized equipment is designed for manufacturing and retreading motorcycle tires. The machine transforms soft, uncured rubber "green tires" into durable finished products through precise heat and pressure application in a mold - a process known as vulcanization.

Key Features Explained

Motorcycle Tyre Curing Press: Specifically designed for motorcycle tire sizes (8"-18"), using vulcanization to cross-link rubber polymers for durability.
Four-Layer Design: Four independent curing stations vertically stacked for space efficiency, allowing simultaneous processing of multiple tires.
Hydraulic System: Provides high, controllable clamping force to seal molds and maintain internal pressure during curing.
Electric Heating: Embedded heating elements offer precise temperature control (150-180°C) without steam boiler requirements.
Semi-Automatic Operation: Combines manual loading/unloading with automated curing cycles for efficiency and consistency.

Technical Specifications

Curing Tire Size	8"-18"
Green Tire Max Height	155-300
Mould Max Diameter	Φ 750
Power	15-18KW
Max Distance Between Hou Plate	690
Bladder Pressure (kgf/cm²)	18-20

Workflow Process

Preparation: Clean mold and prepare green tire
Loading: Place tire in bottom mold half
Cycle Start: Initiate automated curing process
Curing: Hydraulic pressure, electric heating, and bladder inflation
Cycle End: Pressure release and mold opening
Unloading: Remove finished tire and trim excess

Product Advantages

High productivity with four-layer simultaneous processing
Space-efficient vertical design
Consistent quality through precise temperature and pressure control
Operator-friendly semi-automatic operation
Cost-effective balance of automation and manual operation
